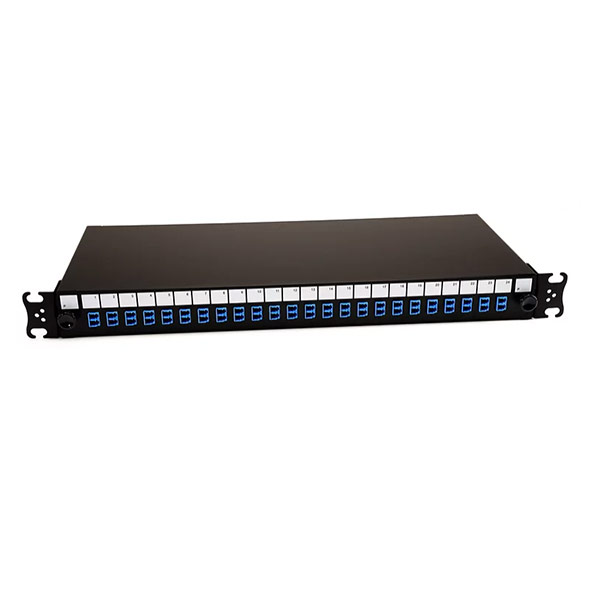

Argosy 1U ECO 24 Way SC Simplex OS2 Fibre Tray

  • Argosy 1U ECO 24 Way SC Simplex OS2 Fibre Tray
    Argosy 1U ECO 24 Way SC Simplex OS2 Fibre Tray
Argosy 1U ECO 24 Way SC Simplex OS2 Fibre Tray
PN - KT-00-0324
£27.63(ex vat) / Each
Qty Price
1-4£27.63 (ex vat)
5-9£26.77 (ex vat)
10+£25.91 (ex vat)

1U ECO fibre patch panel Loaded with LC connectors to offer an economical, high-density 19" rack mount fibre termination solution. The sliding tray is locked in place with two plastic latches, when fully extended the tray is designed to lower to 45°, or move the tray to the side and it will lock to lower only 10°. This provides the perfect working platform for simple installation or easy maintenance and access even after the panel is installed in the rack.

Key Benefits:

  • Panel numbers and rack number identifications labels
  • Improved fibre management with recessed adaptors and rear cable entry options
  • 45° working angle with no exposed screws or sharp edges
  • Screen printed for easy labelling
  • Easy style mounting ears, with fixing points for universal front management
  • New slot feature allows direct attachment of pre-terminated FastFibre manifold
  • Enables gland to be installed with panel in the rack
  • Enables tray to be removed and installed with the panel in the rack

Height x Width x Depth 1U: 44.4mm x 482mm x 205mm
Net Weight: 2.4kg
Packaged Weight: 3kg
Packaged Dimensions: (H) 55m x (W) 530mm x (D) 260mm
IP Rating: 20
Adaptor Type: LC Duplex (48 Fibre)
Mounting Adjustment Range: 50mm
Cable Entry: 20mm 2
Cable Entry: 25mm 2
Easy Slot: 2
Material Thickness: 1.2mm cold rolled steel
Material Coating: Electrostatic Powder Coating
Colour: Black RAL 9004
Operating Temperature: -40°C to +60°C
Compliant to: This product conforms to the material requirements of RoHS2, REACH/SvHC
Designed in accordance with: TIA/EIA 568A.C, ISO/IEC 11801, EN50173, IEC 60304, IEC 61754, EN297-1
