Schurter 4732 C14 IEC Connector
-
Schurter 4732 C14 IEC Connector -
Schurter 4732 C14 IEC Connector -

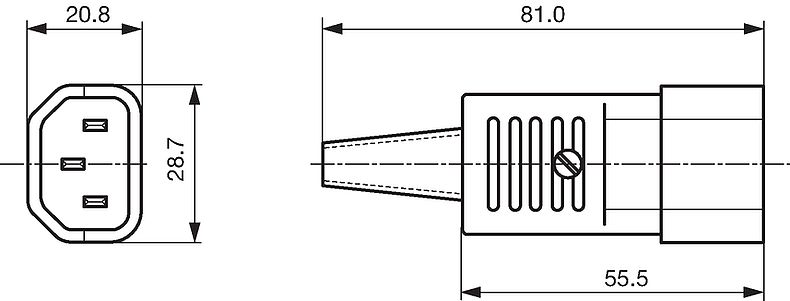

Schurter 4732 C14 IEC drawing

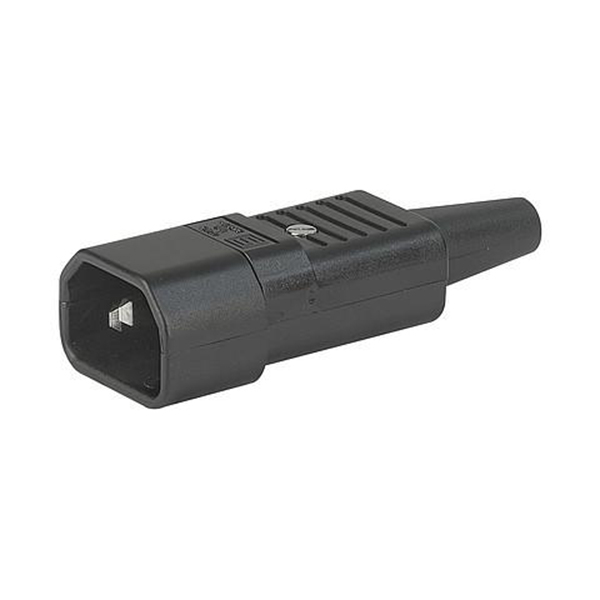

The 4732 is a rewireable straight IEC plug E cord connector suitable for appliances with protection class I according to IEC 61140 standard. Made for appliance inlets with Pin temperature of 70°C, the maximum wire size is 3 x 1mm² (3 x 18AWG), and the maximum cable diameter of 8.5mm.
A standard 10A straight version male power plug, the IEC C14 cord connector is housed in black colour thermoplastic rated UL94 V-0. UL E96454, VDE 40010731, CCC and CSA approved, and rated 10A/250VAC, 50Hz IEC and UL/CSA.
Ideal for power management and industrial applications.
Key Benefits:

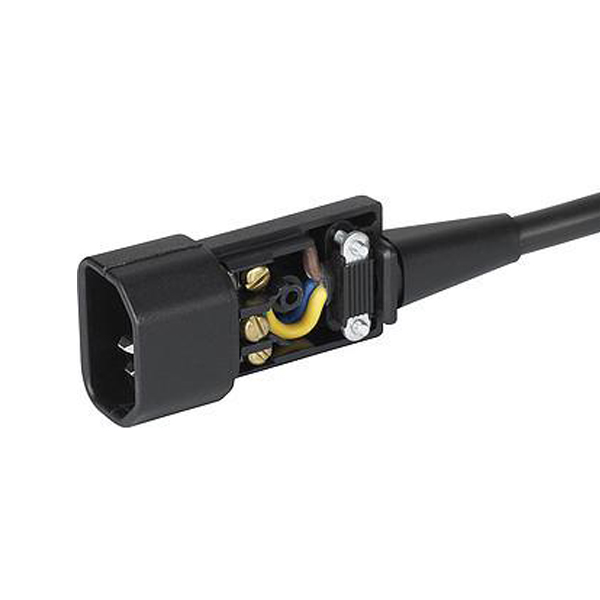

• Cord Connectors (Rewireable): Screw-on mounting
• 1 Function
• Appliance Inlet, Pin temperature 70 °C, Protection class I
• Cable
Ratings IEC: 10 A / 250 VAC; 50 Hz
Ratings UL/CSA: 15 A / 250 VAC; 60 Hz
Dielectric Strength: > 2 kVAC between L-N, > 2 kVAC between L/N-PE, (1 min/50 Hz)
Allowable Operation Temperature: -25 °C to 70 °C
Protection against electric shock: Suitable for appliances with protection class I acc. to IEC 61140
Terminal: Cable
Material – Housing: Thermoplastic, black, UL 94V-0
Appliance inlet/-outlet:
E acc. to IEC 60320-1,
UL 60320-1, CSA C22.2 no. 60320-1 (for cold conditions) pin-temperature 70 °C, 10 A, Protection Class I
Recommended cable diameter: 8.1 mm
Max. wire size (IEC): 3 x 1 mm² / 3 x 16 AWG
Approvals: VDE, UL, & CCC
Compliances: CE, UKCA, RoHS, China RoHS & REACH
