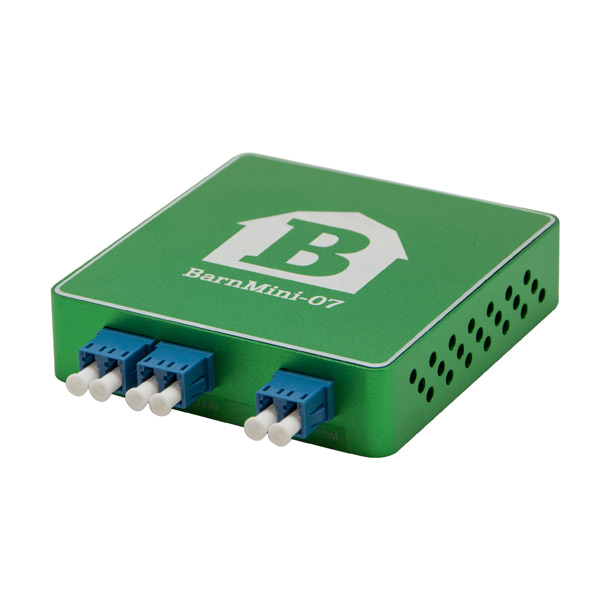

BarnMini 07-3743 4-Ch. CWDM Mux/Demux Simplex Directional Transmission. λ1370-1430
PN - RE-05-0072
£241.81(ex vat) / Each
Qty Price
1-4£241.81 (ex vat)
5-9£229.52 (ex vat)
10+£221.32 (ex vat)

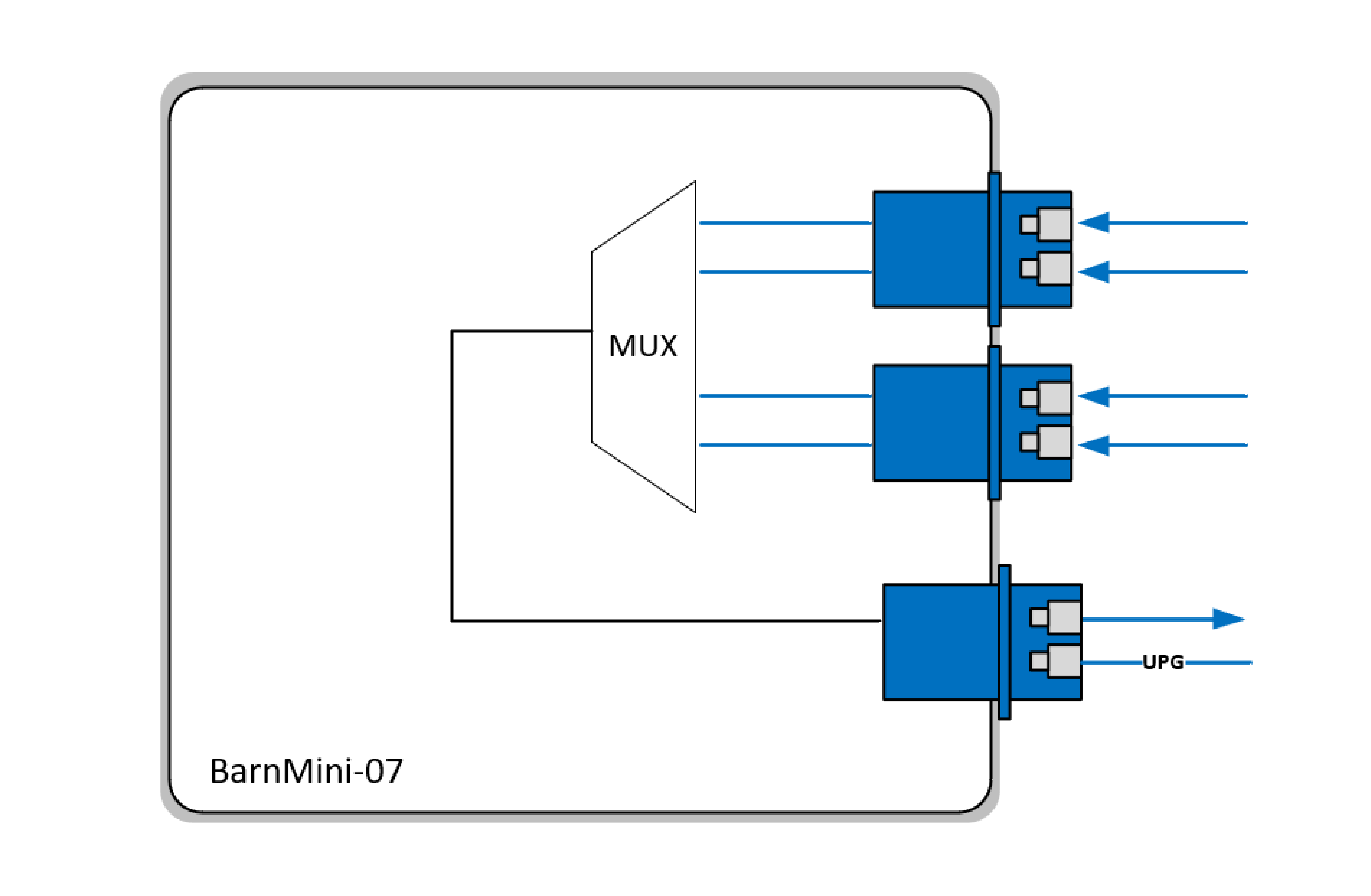

The BarnMini series are made of robust materials in an elegant design. BarnMini-07 is a 4-channel CWDM mulitplexer that can be used for e.g. transportation of 4x optical SDI, ASI, MADI or data on one single fiber.

Mutliple BarnMini-07 can be combined to make an even bigger multiplexer and it is comptabible with the ITU CWDM standard. All BarnMini modules can be used as a standalone box or in a more sophisticated system with BarnOne or BarnColor.

Optical ports
• LC/PC connectors
• BarnMini-07-3743: (1370, 1390, 1410 and 1430) according to ITU-T G694.2
• Channel clear passband: +/-6,5nm
• Insertion Loss: <1,2dB
• Passband ripple: <0,5 dB
• Adjacent Channel Isolation: >30dB
• Non-Adjacent Channel Isolation: >45dB
• Polarisation dependant loss: 0,02dB
• Directivity: >50dB
• Return loss: >45dB
• Polarisation Mode Dispersion: <0,2ps

Physical size
• 92mm x 98mm x 22mm
• 200g
