BELDEN 1694ANH (LSOH) 500M
-
Belden 1694 ANH Green LSOH 500m -
Belden 1694 ANH Violet LSOH 500m -
Belden 1694 ANH Turquoise LSOH 500m
BELDEN 1694ANH (LSOH) 500M
PN - 100084

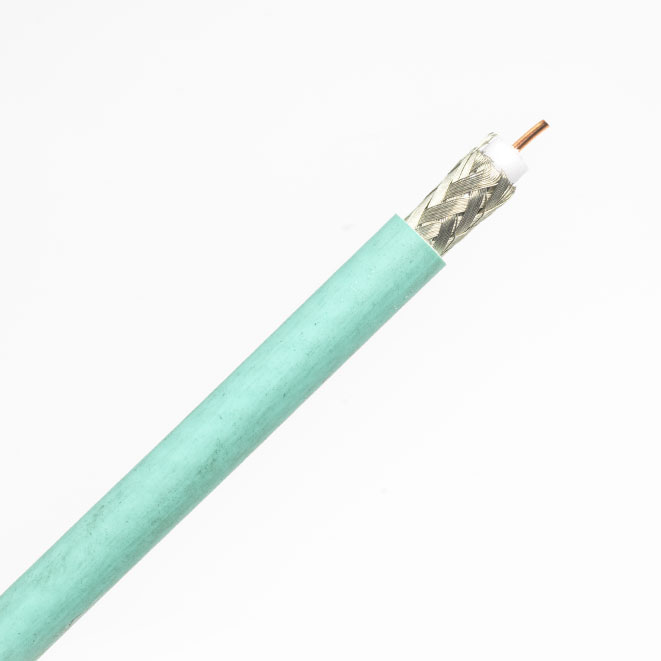

Belden 1694ANH delivers ultra-reliable 6G-SDI video over RG6 coax, with a low-smoke, zero-halogen (LSZH) jacket for maximum safety in critical environments.
- Supports HD, 3G & 6G-SDI (up to 4K UHD)
- Solid 18 AWG copper for long runs
- Foil + 95% braid shielding = ultra-low noise
- Euroclass Dca-rated LSZH jacket
- UV-resistant – ideal for indoor/outdoor use
Conductor
- Size: 18 AWG
- Stranding: Solid
- Nom. Diameter: 1.02 mm
- Material: BC-C - Bare Copper
Insulation
- Element: Insulated Conductor
- Material: PE - Polyethylene (Foam)
- Nom. Insulation Diameter: 4.57 mm (0.180 in)
Outer Shield - Layer 1
- Outer Shield Type: Tape
- Material: Tri-Laminate (Alum+Poly+Alum)
- Coverage: 100%
Outer Shield - Layer 2
- Outer Shield Type: Braid
- Material: Tinned Copper (TC)
- Coverage: 95%
Outer Jacket
- Material: PVC - LSZH - Low Smoke Zero Halogen (Flame Retardant)
- Nom. Diameter: 6.96 mm
Temperature
- Operating: -30°C to +70°C
- Installation: -5°C to +50°C
- Storage: -30°C to +70°C
Bend Radius
- Stationary Min.: 70 mm (2.8 in)
- Max. Pull Tension: 300 N (67 lbf)
Electricals
- Nom. Conductor DCR: 21 Ohm/km
- Nom. Outer Shield DCR: 9.2 Ohm/km (2.8 Ohm/1000ft)
- Nom. Capacitance Cond-to-Shield: 53 pF/m (16 pF/ft)
- Nom. Characteristic Impedance: 75 Ohm
- Nom. Velocity of Prop.: 82%
