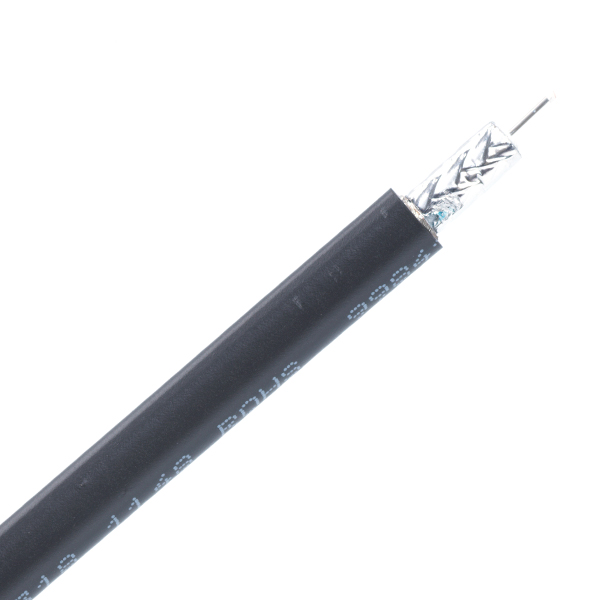

Belden 4505R Black PVC Black, 305m

Home / Video / Video Cable
  • Belden 4505R Black PVC, 305M
    Belden 4505R Black PVC, 305M
  • 1 / 1
Belden 4505R Black PVC Black, 305m
PN - 100069
£1562.63(ex vat) / Reel
On-demand ordering - Contact Us
Qty Price
1-4£1562.63 (ex vat)
5-9£1423.73 (ex vat)
10+£1250.10 (ex vat)
Description Technical Specification

Belden 4505R is a high-performance 75 Ω RG‑59 coax optimised for single-link 4K/12G‑SDI and HD workflows - delivering reliability, flexibility, and installer-friendly efficiency.

  • RG Type: 59

Conductor

  • Size: 20 AWG
  • Stranding: Solid
  • Nom. Diameter: 0.032 in
  • Material: SC - Silvered Copper

Insulation

  • Material: PE - Polyethylene (Foam)
  • Nom. Insulation Diameter: 0.145 in (3.68 mm)
  • Colour Code: White - Notes: Gas Injected

Outer Shield - Layer 1

  • Outer Shield Type: Tape
  • Material: Tri-Laminate (Alum+Poly+Alum)
  • Material Trade Name: Duobond® II
  • Coverage: 100%

Outer Shield - Layer 2

  • Outer Shield Type: Braid
  • Material: Tinned Copper (TC)
  • Coverage: 95%

Outer Jacket

  • Material: PVC - Polyvinyl Chloride
  • Nom. Diameter: 0.233 in (5.92 mm)
  • Overall Cable Diameter (Nominal): 0.233 in (5.92 mm)

Temperature

  • UL Temperature: 60°C
  • Operating: -20°C to +75°C

Bend Radius

  • Installation Min.: 2.3 in (58 mm)
  • Max. Pull Tension: 52 lbs (24 kg)
  • Bulk Cable Weight: 30 lbs/1000ft

Electricals

  • Nom. Conductor DCR: 10.1 Ohm/1000ft
  • Nom. Outer Shield DCR: 3.4 Ohm/1000ft (11 Ohm/km)
  • Nom. Capacitance Cond-to-Shield: 16.1 pF/ft (52.8 pF/m)
  • Nom. Characteristic Impedance.: 75 Ohm
  • Nom. Velocity of Prop.: 83%

Voltage

  • UL Voltage Rating: 300 V (CMR, CMG)
