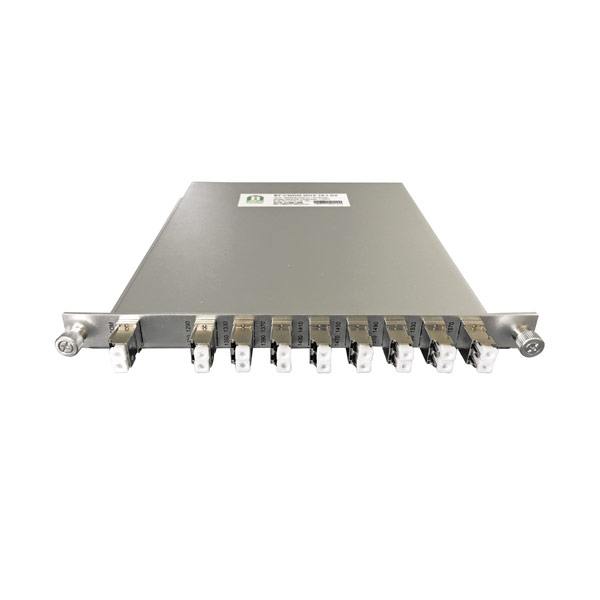

BT-CWDM-MUX-18-LGX 18 channels in LGX box stand-alone

  • BT-CWDM-MUX-18-LGX 18 channels in LGX box stand-alone
    BT-CWDM-MUX-18-LGX 18 channels in LGX box stand-alone
  • BT-CWDM-MUX-18-LGX 18 channels in LGX box stand-alone
    BT-CWDM-MUX-18-LGX 18 channels in LGX box stand-alone
  • BT-CWDM-MUX-18-LGX 18 channels in LGX box stand-alone
    BT-CWDM-MUX-18-LGX 18 channels in LGX box stand-alone
BT-CWDM-MUX-18-LGX 18 channels in LGX box stand-alone
PN - RE-05-1010
£967.25(ex vat) / Each
Qty Price
1-4£967.25 (ex vat)
5-9£918.06 (ex vat)
10+£885.28 (ex vat)

Offering a range of passive optical products needed for the most popular applications. Splitting fiber optic feeds, multiplexing and de-multiplexing CWDM or DWDM feeds and providing optical changeover to manage redundancy are key applications for most fiber transport systems.

A free collection of applications notes outlines some of these applications and how these passive components can be used to enhance operations, save fiber optic space and provide a more robust and efficient signal transport operation.

The LGX series can be used as standalone modules or can be housed into our 1RU frame, BT- HOUS-LGX1RU.

Optical ports
• LC/PC connectors
• Center Wavelengths according to ITU-T G.694.2
• Channel center wavelengths: 1270 – 1610nm
• Channel clear passband: +/- 7nm
• Insertion Loss 8-ch: -2,5dB; 16-/18-ch: -3,5dB (max.)
• Passband ripple: <0,5 dB
• Adjacent Channel Isolation: >30dB
• Non-Adjacent Channel Isolation: >45dB
• Polarisation dependant loss: <0,1dB
• Directivity: >45dB
• Return loss: >45dB
• Polarisation Mode Dispersion: <0,2ps
