G&D Control Center IP 2.0

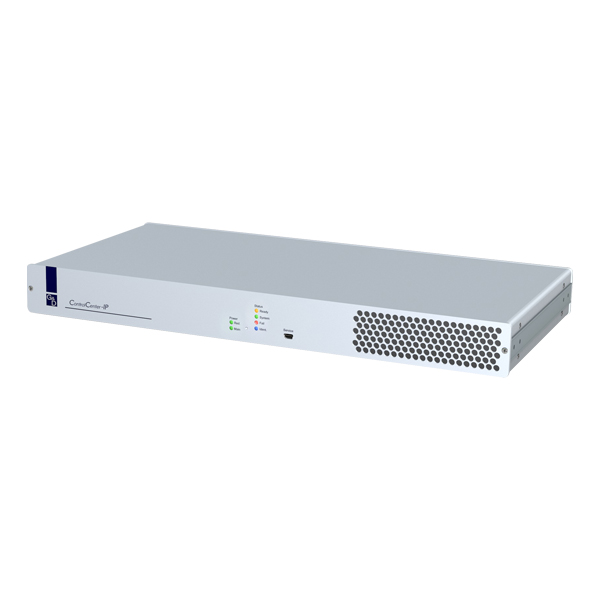

  • G&D Control Center IP 2.0 front
    G&D Control Center IP 2.0 front
  • G&D Control Center IP 2.0 rear
    G&D Control Center IP 2.0 rear
G&D Control Center IP 2.0
PN - RA-2300129
POA
Qty Price
1+POA

Please contact Argosy for a quotation: +44 (0)1844 202101 / [email protected]

The ControlCenter-IP matrix system lets you benefit from all matrix functions in standard IP-based networks.

The central module handles the logic in the network, ensures that all devices are accessible to each other and thus enables you to switch between console modules and computer modules. With only one central module, you can administrate and operate more than 2,000 devices.

Find computer modules and console modules for the most common video signals and with outstanding features. You can also combine all different modules of the KVM-over-IP product series.

Standards

  • Via CAT-x cable and within IP-based standard networks (layer 3)
  • KVM-over-IP™

Device

  • The device takes over the central system logic

Key Benefits

  • Channel grouping: In addition to combining multiple computers to a console, the central module also supports multi-monitor workstations for computers with several video outputs. Here, multiple channels can easily be combined as channel groups. As always, you can administrate all functions in the ControlCenter-Compact web interface. In addition to multiple screens, you can include other signals in these groups. The system also transmits and switches transparent USB2.0 signals as well as RS232.
  • USB pinning: If multiple ports are grouped as multi-channel configuration, the USB pinning function enables you to hold the USB transmission on the current computer even when switching to another channel. In this case the USB transmission is not interrupted but transmitted to the end. Security features • Since dedicated cabling on the device is no longer required and the system works over the network, transmission reliability plays a very important role. For this reason, we have developed various security mechanisms to increase protection in critical environments. All communication and data transmission is encrypted, ensuring a high level of security in critical environments.
  • Boot loader, operating system and firmware of the ControlCenter-IP form a Trusted Computing Platform, which is protected from tampering by third parties. Here, an integrated Trusted Platform Module (TPM hardware module) with an RSA encryption algorithm and a key length of 2048 bits secures all access and configuration data against spying. Sensitive information such as login information and passwords are stored as permanently encrypted. Possible modifications of the firmware can be detected early, thus leading to an interruption of the boot process. This prevents manipulation attempts, such as smuggling of a keyboard sniffer.
  • Redundant power supply
  • Redundant network interface
  • Support of external authentication via LDAP, Active Directory, TACACS+, Radius
  • With the Monitoring function, you can auto-output device status messages to Syslog servers or SNMP. The web interface lets you monitor the device manually.access protection and user management can be switched off

Operation features

  • Auto-recognition and display of the system structure
  • Configuration over web interface
  • Central update of all components over network

Transmission
KVM-over-IP™ transmission: Yes
Range: 100 meters
KVM Matrix systems component: central module
Medium: CAT7, CAT6, CAT5e
Data rate: 1 Gbps

Network
Medium 1: CAT7, CAT6, CAT5
Data rate 1: 10Mbps, 100Mbps, 1Gbps
Medium 2: CAT5, CAT6, CAT7
Data rate 2: 10Mbps, 100Mbps, 1Gbps

Housing
Material: Anodized aluminum
Size: W 435mm x H 44.5mm x D 210mm
IP protection class: IP20
Weight: approx. 2.00 kg

Operating Conditions
Temperature operation: 5ºC to 45ºC
Humidity operation: 20% to 80% non-condensing
Area of ​​use: interior
Maximum operating altitude: 3048m above sea level
Temperature storage: -20°C to 55°C
Humidity storage: 15% to 85% non-condensing
MTBF: 146000 hours at 25°C
Annotation: (due to fans, system MTBF 230,000h)

Power Supply
1 Input voltage: 100-240VAC
Input frequency: 60-50Hz
Power consumption: 0.7-0.4vA
Power consumption idle: 17 W
Power consumption max.: 28.3 W
Heat Dissipation idle: 17 W
Heat dissipation max.: 33 W

Power Supply 2
Input voltage: 100-240VAC
Input frequency: 60-50Hz
Power consumption: 0.7-0.4 A
Power consumption idle: 17 W
Power consumption max.: 28.3 W
Power consumption max.: 8.3 W
Heat dissipation max.: 33 W

Standards
EMC directive 2014/30/EU
EN55032 (CISPR 32) - EMC emission
EN55024 EMC interference immunity
EN61000-3-2 - EMC current harmonics
EN61000-3-3 - EMC flicker
EN61000-6-2 - EMC enhanced interference immunity Industrial low-voltage directive 2014/35/ EU
EN60950 - Safety
EN62368 - Safety
EN60825-1 - Laser safety
EAC TR CU 020/2011 Declaration
EAC TR CU 004/2011 Declaration
EAC TR CU 037/2016 Declaration
WEEE 2012/19/EU
FCC CFR 47 part 15 subpart B cl. B
Prohibited substances RoHS 2011/65/EU
Product safety 2001/95/EC
