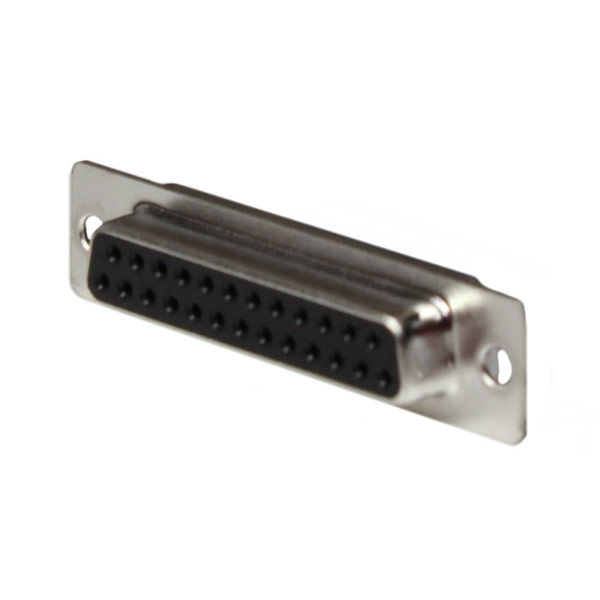

The 25 way D-Subminiature socket is suitable for military, computer interfacing, industrial or commercial applications, etc. The solder lugs on the shell provide good cable-to-equipment grounding connection, and pre-drilled 3.05mm diameter holes on either side of the flanges enable easy panel mounting.
The connector contains two parallel rows of sockets, and the D-shaped shell provides mechanical support and ensures the correct orientation when mating. Manufactured in a bright tin-plated steel shell with grounding indents for EMI and RFI shielding, the solder cup terminations on the rear of this connector allow wires to connect easily.
Suitable for Computers, monitors and scanners, networking and communications equipment, data processing equipment, and industrial equipment.
Features and Benefits
* High-performance design
* Sturdy bright tin-plated steel shell with grounding indents for EMI and RFI shielding
* UL 94V-0 insulator
* Performance Level 3
* RS232 standard interface
* High-quality machined contacts
* Flanges with 3.05 mm mounting holes for mounting to a panel
* Solder cups for simple wire termination
