Argosy EasyLink Pro Fibre Optic Patch Panel System
-
Argosy EasyLink Pro Fibre Optic Patch Panel System -

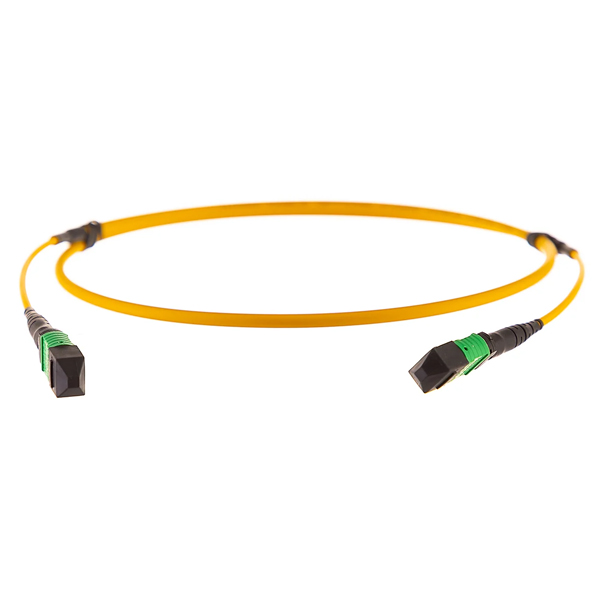

OS2 Trunk Cable -
OM3 Trunk Cable -

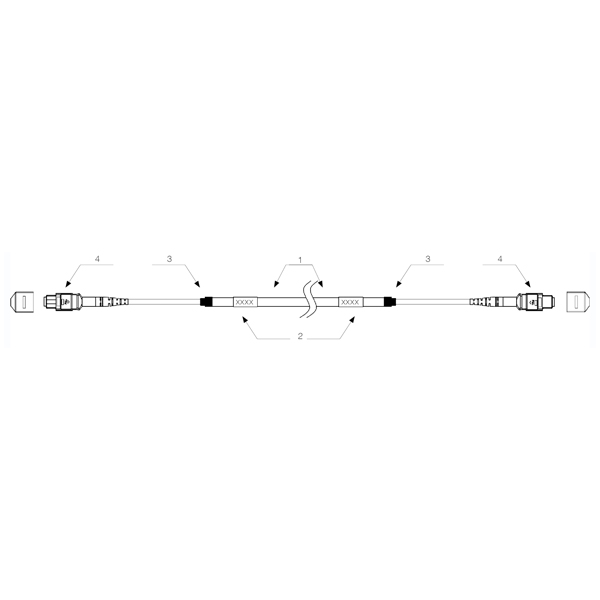

Trunk Cable Drawing

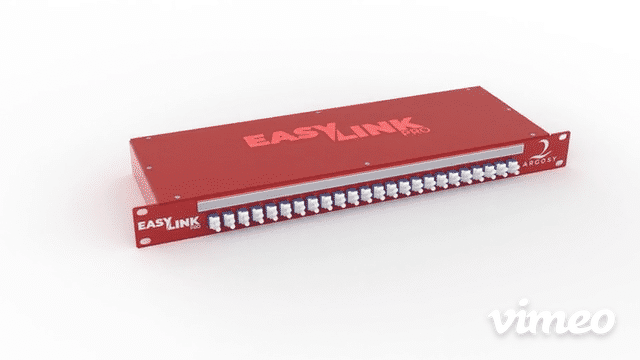

The EasyLink Pro is a pre-wired 1RU fibre optic patch panel, designed to streamline your network setup and eliminate common installation challenges. Pre-configured with either 24 LC duplex or 24 SC simplex adaptors, this system ensures fast, reliable connections, reducing downtime and the need for complex splicing equipment.

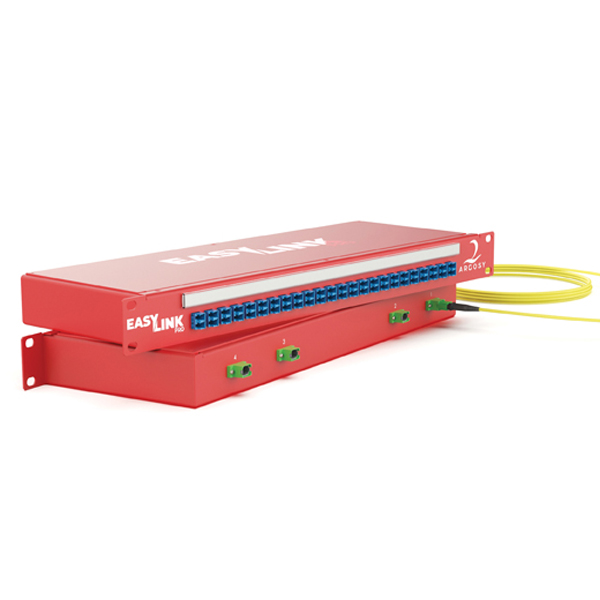

Engineered with efficiency in mind, the EasyLink Pro connects each end via MTP or MPO trunk cables, providing a seamless installation process that avoids the risks of handling delicate pre-terminated cables. Gone are the days of dressing traditional trays or hiring expensive splicing services.
Available in OS2 and OM3 fibre types and supporting type A, B, & C polarity, the EasyLink Pro offers versatile options to meet various network demands, while ensuring high performance and easy scalability for future expansions. Optimise your fibre optic network with the reliability, speed, and simplicity of the EasyLink Pro system.
Argosy EasyLink Pro OS2 Product Specification
Connector A
- Connector A: MTP/MPO Male (Pins)
- Fibre Mode: OS2 9/125 µm SM
- MPO Connector IL: 0.35 dB Max. (0.15 dB Typ.)
- MPO Connector RL: ≥ 60 dB
Connector B
- Connector B: LC / SC UPC
- Wavelength: 1310/1550 nm
- LC Connector IL: ≤ 0.2 dB
- LC Connector RL: ≥ 50 dB
Argosy EasyLink Pro OS2 Product Specification
Connector A
- Connector A: MTP/MPO Male (Pins)
- Fibre Mode: OS2 9/125 µm SM
- MPO Connector IL: 0.35 dB Max. (0.15 dB Typ.)
- MPO Connector RL: ≥ 60 dB
Connector B
- Connector B: LC / SC APC
- Wavelength: 1310/1550 nm
- LC Connector IL: ≤ 0.3 dB
- LC Connector RL: ≥ 60 dB
Argosy EasyLink Pro OM3 Product Specification
Connector A
- Connector A: MTP/MPO Male (Pins)
- Fibre Mode: OS2 9/125 µm SM
- MPO Connector IL: 0.35 dB Max. (0.15 dB Typ.)
- MPO Connector RL: ≥ 20 dB
Connector B
- Connector B: LC / SC UPC
- Wavelength: 1310/1550 nm
- LC Connector IL: ≤ 0.2 dB
- LC Connector RL: ≥ 30 dB
OS2 Singlemode Trunk Cables Specification
Connector A
- Connector A: MTP/MPO Female (pinless)
- Fibre Mode: OS2 9/125 µm SM
- Polish Type: APC to APC
- Insertion Loss: 0.35dB Max (0.15dB Typ.)
- Attenuation at 1310nm: ≤0.32 dB/km
- Jacket OD: 4.5mm
- Installation Tensile Load: 100 N
- Operating Temperature: -20°C to +70°C
Connector B
- Connector B: MTP/MPO Female (pinless)
- Wavelength: 1310/1550 nm
- Minimum Bend Radius: 10mm
- Return Loss: ≥60dB
- Attenuation at 1550nm: ≤0.18 dB/km
- Cable Jacket: LSZH
- Long-Term Tensile Load: 150 N
- Storage Temperature: -40°C to +85°C
OM3 Multimode Trunk Cables Specification
Connector A
- Connector A: MTP/MPO Female (pinless)
- Fibre Mode: OM4 (OM3) 50/125µm
- 40/100G Ethernet Distance: 150m at 850nm
- Polish Type: UPC to UPC
- Insertion Loss: 0.35dB Max (0.15dB Typ.)
- Attenuation at 850nm: ≤2.3 dB/km
- Jacket OD: 4.5mm Installation
- Tensile Load: 66 N
- Operating Temperature: -20°C to +70°C
Connector B
- Connector B: MTP/MPO Female (pinless)
- Wavelength: 850/1300nm
- 10G Ethernet Distance: 400m at 850nm
- Minimum Bend Radius: 7.5mm
- Return Loss: ≥20dB
- Attenuation at 1300nm: ≤0.6 dB/km
- Cable Jacket: LSZH
- Long-Term Tensile Load: 150 N
- Storage Temperature: -40°C to +85°C
