Argosy 9 Way D-Sub Metalised Plastic Hood

Home / Data / Hoods
  • Argosy 9 Way D-Sub Metalised Plastic Hood
    Argosy 9 Way D-Sub Metalised Plastic Hood
  • 1 / 1

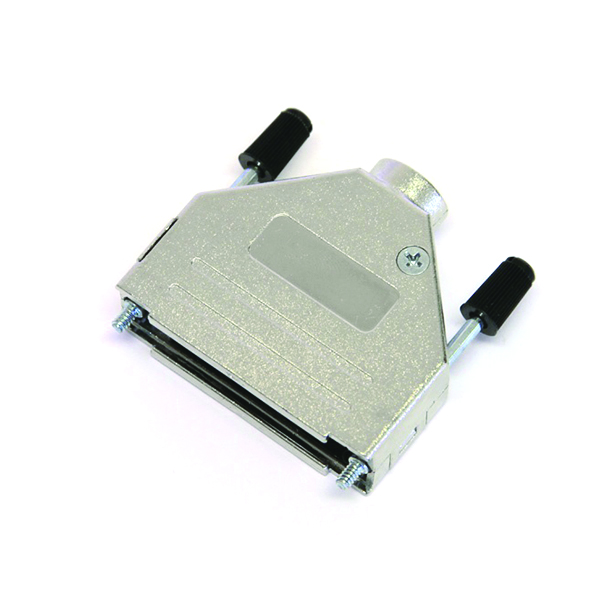

Argosy 9 Way D-Sub Metalised Plastic Hood
PN - 104951
£0.72(ex vat) / each
On-demand ordering - Contact Us
Qty Price
1-4£0.72 (ex vat)
5-9£0.67 (ex vat)
10+£0.58 (ex vat)
Description Technical Specification

The Argosy 9 Way D-Sub Metalised Plastic Hood comes complete with plastic capped jackscrews and a selection of grommet sets for various cable sizes.

This is available in all sizes to suit 9, 15, 25 and 37-way standard connectors and 15, 26, 44 and 62 way high-density connectors.

Key Benefits:

  • Manufactured in ABS Plastic, Ni Plated
  • Supplied with UNC4-40 Jackscrews as standard, M2.5, M2.6 or M3.0 threads available on request
  • Cable Outlet: Straight
  • Cable Diameter up to 13.0mm
  • Available in sizes 9-15-25-37
  • Minimise interference from electromagnetic and RF sources
  • Non-static parts avoid ESD problems
  • Accept round foil and braided cable types
  • Approved according to VDE 0871, FCC 20780 and 89/336/EU
  • Long jackscrews with UNC 4-40 thread as standard M2.5, M2.6 or M3.0 as option

  • Material: ABS Plastic, Ni-plated
  • Operating Temperature: -40°C to +110°C
  • Cable strain relief: Polycarbonate, PC UL94 V-0
  • Cable diameter: 3.0 - 13.0 mm
  • Locking screws: Long jackscrews with moulded top for colour coding
  • Cable outlet: Straight
  • Attenuation factor: >40 dB between 30 MHz and 1 GHz
