Argosy

IMAGE 1000 (LSOH)

Home / Video / Video Cable

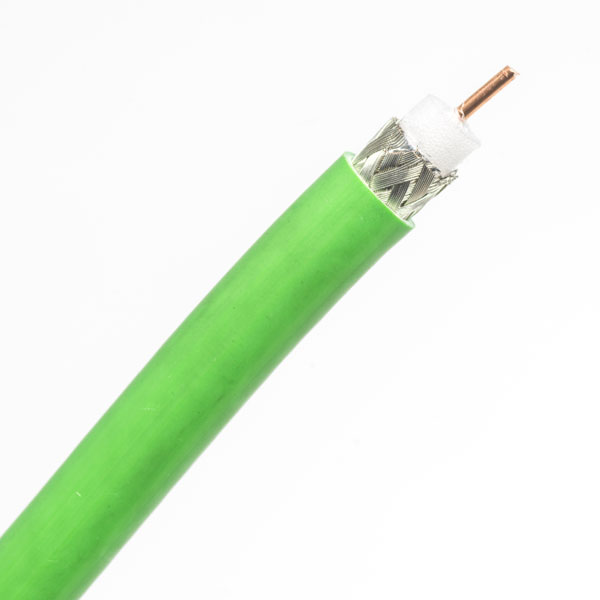

  • Image 1000 Green LSOH
    Image 1000 Green LSOH
  • 1 / 1
IMAGE 1000 (LSOH)
PN - AA-05-0061
£153.72(ex vat) / Reel
Qty Price
1-4£153.72 (ex vat)
5-9£140.06 (ex vat)
10+£122.98 (ex vat)
Description Technical Specification

Primarily used for inter-rack wiring and longer runs, the iMAGE 1000 range of HD SDI Digital Video cables are designed to deliver superior performance for various digital applications at high frequencies, while also suitable for analogue applications that use low frequencies.

Produced exclusively for Argosy by Draka Prysmian, iMAGE 1000 has a diameter of 7mm, suitable for 12Gbit/s, 4K (SMPTE 2082), UHD, HDTV (1080i, 720p, 1080p), SDI, SDV, SDTI, also for Composite and Component video standards.

Available in green, purple, turquoise, and grey colours, and in several reel sizes from 100m to 500m

  • Inner Conductor Solid copper wire, bare, diameter 1.0 mm
  • Insulation Foam-PE, diameter 4.8 mm
  • Outer Conductor Al-PETP-Al-foil under tinned copper braid 95%
  • Sheath Construction LSOH, diameter 7 mm (PVC available)

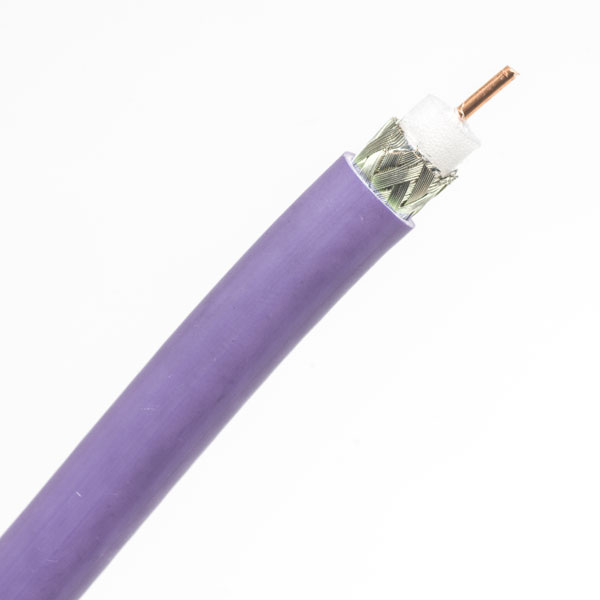

  • Sheath Colour Green, Violet, Turquoise, Cream or Grey
  • Cable Weight 33Kg (500m reel)
  • Minimum Bending Radius 74mm
