The NAUSB3 is a reversible USB 3.0 feed through adapter. The standardised D-shape housing of the adapter fits into conventional patch panels and offers an additional protection for the connector.
Not compatible with NKUSB-* cables.
Connection Type: Adapter
Contact plating: Au
Contacts: Bronze (CuSn)
Insert: PBTP 15 % GR
Shell: Zinc diecast (ZnAl4Cu1)
Shell plating: Nickel
Reading / Writing speed: >200 MB/s
Mounting direction: Front mounting
Chassis shape: D
Lifetime: > 1000 mating cycles
Flammability: UL 94 V-0
Standard compliance: USB 3.0 specifications
Temperature range: -25 °C to +85 °C

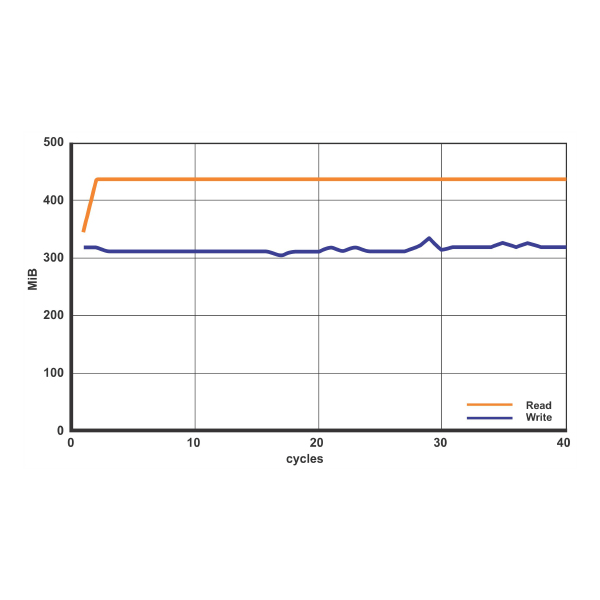

USB 3.0 Performance
To meet the USB3.0 specifications the NAUSB3* chassis contain tight tolerance pin wiring and an improved ground connection due to an additional copper film between the USB jacks. As a result the feed through adapter guarantees permanent writing and reading speed > 200 MB/s.
Certain applications require that the USB 3.0 type A or type B jack is on front to connect end devices like hard disk, cameras, etc.The connector configuration of the NAUSB3* can be changed by rotating the USB insert without special tools.
