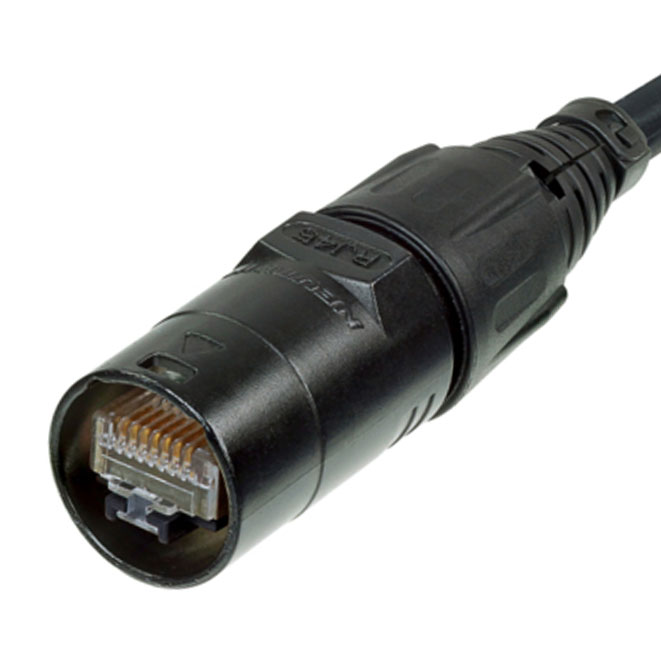

Neutrik NE8MCB Cable Connector

  • Neutrik NE8MCB Cable Connector
    Neutrik NE8MCB Cable Connector
Neutrik NE8MCB Cable Connector
PN - DB-65-523
£2.90(ex vat) / Each
Qty Price
1-4£2.90 (ex vat)
5-9£2.62 (ex vat)
10+£2.50 (ex vat)

The NE8MCB is an RJ45 cable connector carrier for pre-assembled RJ45 plugs consisting of a black chromium shell, fixing disk, chuck, bushing and boot. Packed with two cable protection elements for cable diameters either up to 5 mm or 8 mm. The cable connector carrier does not include a RJ45 plug. The etherCON cable connector carrier upgrades a conventional RJ45 connector to an extremely robust lockable solution. Attention! Does not intermate with the CAT6 chassis connectors NE8FDY-C6 and NE8FDY-C6-B.

Key Benefits:

  • The RJ45 system for harsh and demanding environments
  • Cable connector carrier accepts the most common RJ45 plugs (see list at downloads)
  • Rugged diecast shell and unique chuck type strain relief
  • Protects Ethernet connections in a variety of commercial type applications and is designed to prevent breakage of the fragile components of standard RJ 45 connectors
  • Allows assembly of preassembled conventional RJ45 cables
  • Accessories include colour coded boots in 9 standard colours

  • Gender: male


  • Cable O.D.: max. 8 mm 0.315’
  • Insertion force: ≥ 220 N (subject to cable O.D. & material)
  • Withdrawal force: ≤ 20 N
  • Lifetime: > 1000 mating cycles


  • Boot: Polyamide (PA 6)
  • Shell: Zinc diecast (ZnAl4Cu1)
  • Shell plating: Black chromium
  • Strain relief: Polyacetal (POM)


  • Temperature range: -30 °C to +80 °C
