Neutrik NC3FD-H - XLR

  • Neutrik NC3FD-H - XLR
    Neutrik NC3FD-H - XLR
Neutrik NC3FD-H - XLR
PN - DA-65-5683
£5.06(ex vat) / Each
Qty Price
1-4£5.06 (ex vat)
5-9£4.58 (ex vat)
10+£4.36 (ex vat)

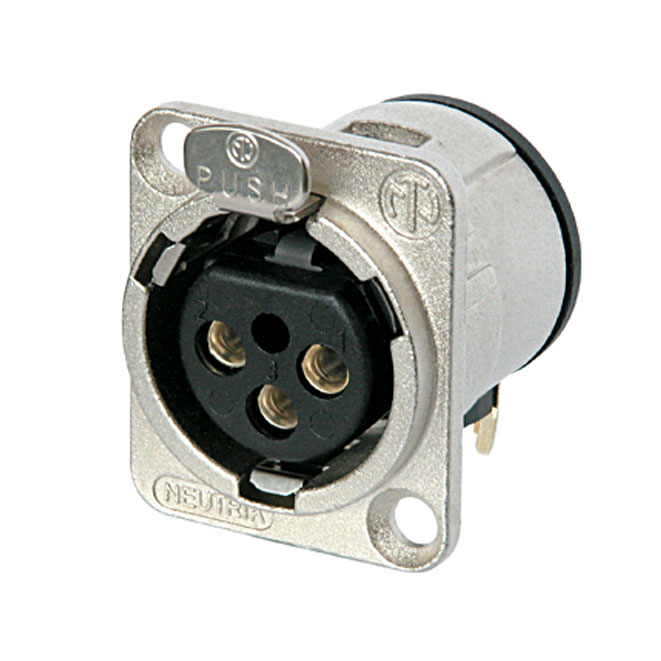

The Neutrik NC3FD-H is a 3 pole female receptacle, horizontal PCB mount with nickel housing and silver contacts.

Universal D-size metal body XLR panel mount series for pcb mount applications. Insert is removable from shell for ease assembling. UL recognised component.

Key Benefits:

  • D-shape metal shell
  • Insert is removable from rear of connector and locked into place by internal latch - permitting assembling and testing of pcb before assembling into housing
  • Optimal RF protection using 3 shield contacts
  • Front or rear panel mount

Connection type: XLR
Gender: female

Electrical
Capacitance between contacts: ≤ 4 pF
Contact resistance: ≤ 5 mΩ
Dielectric strength: 1.5 kVdc
|Insulation resistance: > 10 GΩ (initial)
Rated current per contact: 6 A
Rated voltage: <50 V

Environmental
Approvals: UL
Flammability: UL 94 V-0
Standard compliance: IEC 61076-2-103
Protection class: IP 40
Solderability: Complies with IEC 68-2-20
Temperature range: -30 °C to +80 °C

Mechanical
Insertion force: ≤ 20 N
Withdrawal force: ≤ 20 N
Lifetime: > 1000 mating cycles
Wiring: Horizontal PCB mount
Locking device: Latch lock
Mounting direction: Rear mounting
Chassis shape: D

Material
Contact plating: 2 µm Ag over 2 µm Ni
Contacts: Bronze (CuSn6)
Insert: PA66
Locking element: Steel Ck67
Shell: Zinc diecast (ZnAl4Cu1)
Shell plating: Nickel
