Neutrik NP3TB-R Red 'B' Gauge
-
Neutrik NP3TB-R Red 'B' Gauge

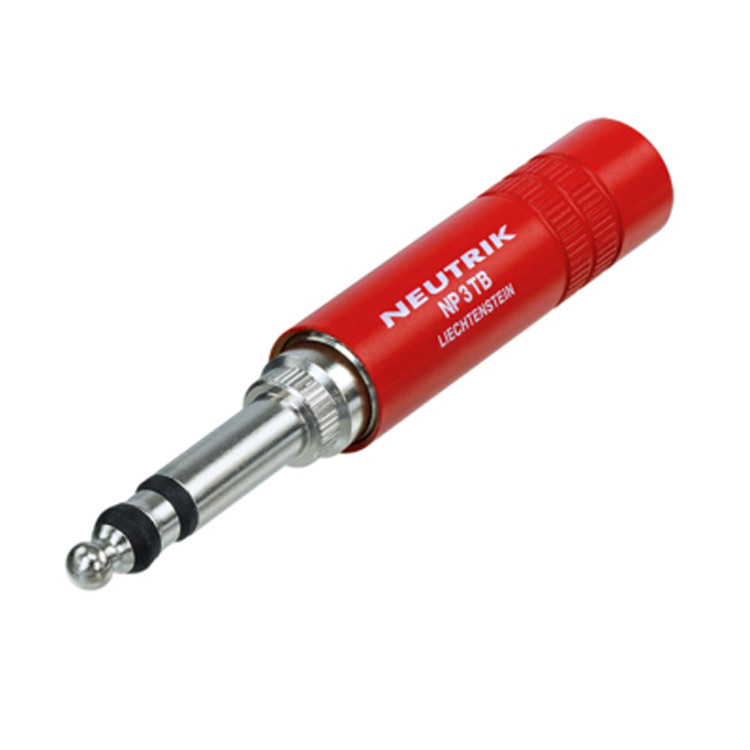

The Neutrik NP3TB-R is a 1/4" ‘B-Gauge’ plug (BPO 316), red metal housing, nickel contacts.
Professional phone plug according B-Gauge standard BPO316. Featuring similar construction as the standard Neutrik phone plugs with chuck type strain relief and slimline metal barrel. These plugs are not compatible with standard 1/4" jacks (acc. EIA RS453) and patch panels.
Key Benefits:
• 1/4" ‘B-Gauge’ plug (BPO 316)
• One-piece Tip conductor ensures secure conductivity
• Metal shell and chuck type cable retention - robust and dependable
Connection Type: plug
Gender: male
Electrical
Contact resistance: depends on mating connector mΩ
Dielectric strength: 1 kVdc
Insulation resistance: > 2 GΩ (initial)
Rated current per contact: depends on mating connector A
Rated voltage: < 50 V
Material
Bushing: Polyacetal (POM) + PU
Contact plating: 2 µm Ni (Su)
Contacts: Brass (CuZn39Pb3)
Insert: Polyamide (PA 6.6 30 % GR)
Shell: Brass (CuZn39Pb3)
Shell plating: Red coated
Strain relief: Polyacetal (POM)
Mechanical
Cable O.D.: 4 - 7 mm
Lifetime: > 1000 mating cycles
Wiresize: 1 mm², 18 AWG
Wiring: Solder contacts
Environmental
Standard compliance: B-Gauge BPO316
Solderability: Complies with IEC 68-2-20
Temperature range: -20 °C to +65 °C
