Neutrik NKO4S-L-0-200 OpticalCON QUAD Lite SM 200m Airspool

  • Neutrik NKO4S-L-0-200 OpticalCON QUAD Lite SM 200m Airspool
    Neutrik NKO4S-L-0-200 OpticalCON QUAD Lite SM 200m Airspool
  • Tactical patch cable
    Tactical patch cable
  • Tactical patch cable
    Tactical patch cable
Neutrik NKO4S-L-0-200 OpticalCON QUAD Lite SM 200m Airspool
PN - KQ-28-16200
£594.80(ex vat) / Each
Qty Price
1-4£594.80 (ex vat)
5-9£575.61 (ex vat)
10+£537.24 (ex vat)

The Neutrik opticalCON QUAD LITE is a 4 channel fibre system, improved bending performance due to new tactical fibre design, black matt outer jacket, available in multi- and single-mode (PC or APC).

Besides extreme applications there is also a demand for quality fibre connections for semi-rugged applications as e.g. patching, or permanent installations. Such applications require a focus on costs and a sealing shutter is not required. The opticalCON QUAD LITE offers high performance and a cost effective, compact, and light weight design. It is fully compatible with the standard opticalCON QUAD chassis connector.

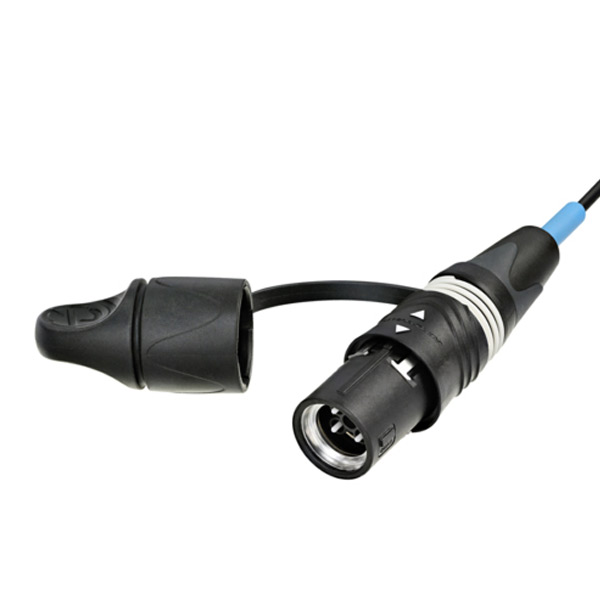

The opticalCON QUAD LITE cable connector accommodates a standard optical 1.25 mm ferrule in a durable plastic housing. It features a spring loaded push-pull locking mechanism and an excellent cable retention utilising aramid yarn. The connector comes pre-assembled and is not available as a single component. The cable is available in different lengths and comes with an airspool packaging.

Key Benefits:

  • Ruggedised 4 channel fibre optic connection system
  • Cost optimised fibre connection for semi and permanent installation
  • Designed for point-to-point connections
  • Waterproof acc. to IP65 safety standard in mated condition
  • Lightweight plastic housing
  • Reliable Push-Pull locking mechanism
  • Easy to clean, no special tools required
  • Compatible with standard opticalCON NO4FDW-A chassis
  • Custom colour coding possible
  • Tactical patch cable
Conventional patch cables are sensitive in terms of undercutting the minimum bending radius and lateral pressure. Neutrik’s tactical patch cables contain a unique fiber design including a protection layer which allows bending with minimal radius and increased lateral pressure. Therefore the tactical patch cables are the right choice for permanent or semi-permanent applications.

  • Connection Type: opticalCON
  • Gender: male

Mechanical

  • Cable retention: > 250 N
  • Insertion force: < 45 N
  • Withdrawal force: < 45 N
  • Lifetime: > 2500 mating cycles
  • Locking device: Push-Pull

Material

  • Boot: Rubber (EPDM)
  • Bushing: Polyamide (PA 6) & Thermoplastic elastomer (TPU)
  • Insert: PBT
  • Shell: PBT
  • Strain relief: CuZn36 Pb3 (Brass)
  • Dust protection cap: Rubber (EPDM)

Environmental

  • Flammability: UL 94 HB
  • Temperature range: -40 °C to +70 °C
  • Optical Insertion loss: < 0.45 dB / connection
  • Optical connector: 1.25 mm ceramic ferrule (PC and APC)
  • Optical wiring: ISO / IEC 11801
  • Optical return loss: >50 dB (PC)
                                      >60 dB (APC)

Mobile cable

  • Colour: black, matte
  • Core diameter: Singlemode 9 µm, Multimode 50 µm
  • Cladding diameter: 125 µm PUR
  • Minimal bending radius: 3.5 cm
  • Number of fibers: 4
  • Cable retention: Aramid yarn
  • Weight: 14 kg/km
  • Overal diameter: 3.5 mm
