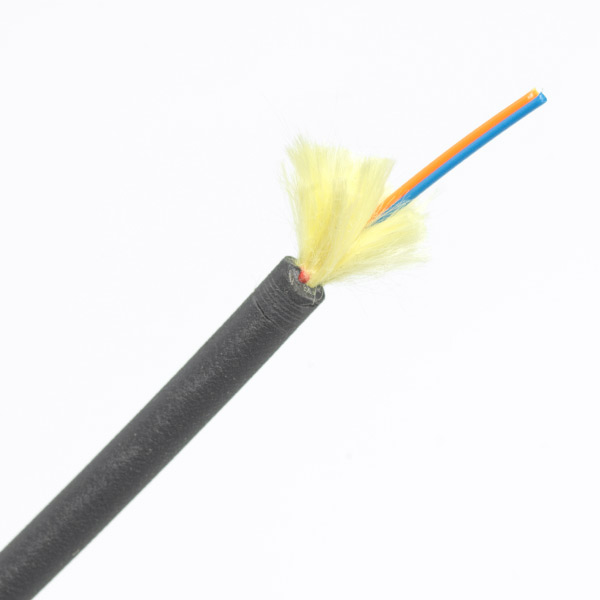

The DX-Series is a deployable cable that is ideal for use in harsh environments where deployment and retrieval for reuse are required.
Key Benefits:
- Extremely strong, lightweight, rugged, survivable tight-buffered cables are designed for broadcast field use and commercial applications
- Compact, round cable design for ease of transportation and deployment
- Core-locked jacket for improved mechanical performance
- Designed for use in adverse environments where reduced size and weight are important
- Helically stranded cable core for flexibility, survival in difficult pulls, and exceptional mechanical protection for the optical fibers
- Cables have been tested and are in use in broadcast data communications applications worldwide
- Can be used outdoors for temporary deployment directly on the ground in all terrains, including severe environments
- Suitable for industrial, mining and petrochemical environments; chemical resistant
- Crush resistant and resilient with a thick layer of aramid strength members
- Polyurethane jacketed for abrasion, cut and chemical resistance
- Most commonly used with ruggedised multiway military tactical field connectors, for maximum connector retention (400lbs)
- Flame-Retardant Tactical (V) outer jacket
Laser Ultra-Fox™ Fibre Performance
- Fibre Code: ALT
- Industry Standard Designation: Laser Optimised OM3, Bend Insensitive, ISO/IEC 11801
- Core/Cladding Diameter (µm): 50/125
- Numeric Aperture: 0.20
- Wavelength (nm): 850/1310
10-Gigabit
- Ethernet Distance (m): 300/300
- Maximum Cabled Attenuation (dB/km): 3.0/1.0
- Minimum Laser EMB Bandwidth (MHz-km): 2000/500
- Minimum OFL LED Bandwidth (MHz-km): 1500/500
- Primary Coating Diameter (µm): 245
- Secondary Buffer Diameter (µm): 900
- Proof Test Level (kpsi): 100
Installation and Operating Characteristics
- Max Tensile Load: Installation - 1,800 N (400 lbs)
Operating - 600 N (130 lbs) - Min Bend Radius: Installation - 5.0 cm (2.0 in)
Operating 2.5 cm (1.0 in)
Mechanical and Environmental
- Impact Resistance EIA/TIA-455-25A: 1500 impacts
- Crush Resistance TIA/EIA-455-41A: 1800 N/cm
- Flex Resistance: 2000 cycles
- Operating Temperature: -40°C to +85°C
- Storage Temperature: -70°C to +85°C
Cable Characteristics
- Jacket Colour: Black
- Jacket Material: Flame Retardant Tactical Polyurethane
- Buffer Material: Hard Elastomeric
- Cable Weight: 24 kg/km (16 lbs/1000’)
- Cable Diameter: 5.0 mm ( 0.20 in)
