Bulgin PX0587 C13 IEC Connector

  • Bulgin PX0587 C13 IEC Connector
    Bulgin PX0587 C13 IEC Connector

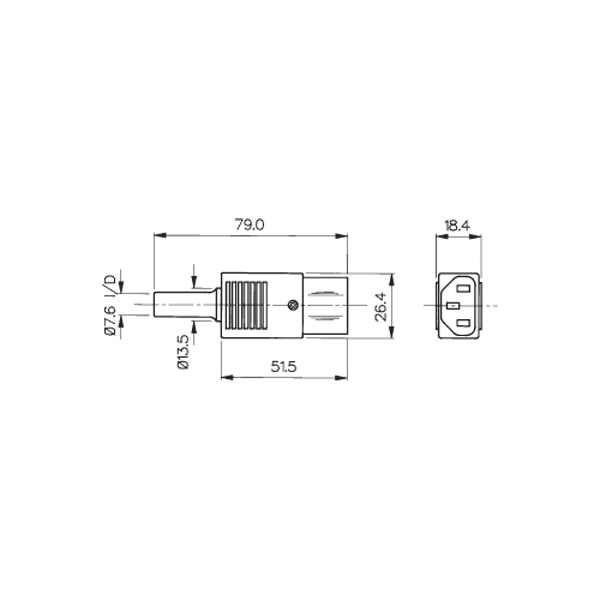

  • Bulgin PX0587 C13 drawing
    Bulgin PX0587 C13 drawing
Bulgin PX0587 C13 IEC Connector
PN - HA-00-003
£3.23(ex vat) / Each
Qty Price
1-4£3.23 (ex vat)
5-9£3.06 (ex vat)
10+£2.98 (ex vat)

A rewireable IEC power inlet with cable mounting, the Bulgin PX0587 (straight female connector) is an EN60 320-1 Standard sheet C13 IEC connector that offers solutions to most mains-powered equipment and cable applications. It features screw terminals, brass contacts, and black colour IEC inlet. Contact resistance is 10mΩ, and operating temperature ranges from -40°C to 70°C. The electrical rating is up to 10A, 250VAC, and the AC breakdown voltage is 4.5KV (pole to pole) and 4KV (poles to panel).

Ideal for industrial applications, power management, and portable devices, the straight female connector conforms to IEC/EN 60320 specifications carrying UL, CSA, VDE approvals. It mates with PX0575, PX0579, PX0580, PF0001, PF0011, PF0030, PF0033 series Bulgin connectors.

Key Benefits:
• Cable Mounting
• Rewireable
• Screw Terminals
• 10A, 250V AC

Terminations: Screw Terminals
Colours: No suffix (Black), /WH (White), /GY (Grey)
Max. Rating: 10A, 250V AC
Contact Resistance: <10mΩ
Insulation Resistance: >10³ MΩ
A.C. Breakdown: Contact-Contact 4.5kV. (Contacts-Accessible) Parts 4kV
Operating Temp: –40°C to +70°C
Withdrawal Force: 10N (Min.) 50N (Max.)
Mouldings: Nylon, Flammability Rating UL94V-0
Contacts: Brass, Clean
RoHS: Compliant
Accessories / Notes: VDE and ENEC approval for black and white versions only.
Mating Inlets: PX0575, PX0579, PX0580, PF0001, PF0011, PF0030, PF0033
