TSL Products VPB-20+20C13-32A

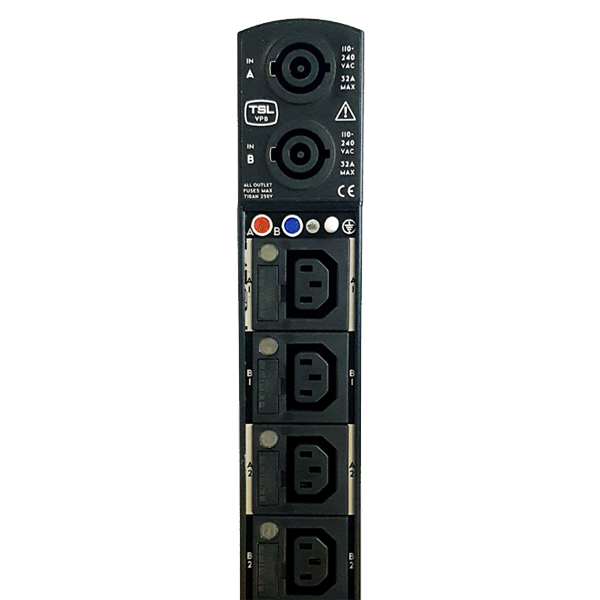

  • TSL Products VPB-20+20C13-32A close-up
    TSL Products VPB-20+20C13-32A close-up
TSL Products VPB-20+20C13-32A
PN - HJ-00-0003
£550.13(ex vat) / Each
Qty Price
1-4£550.13 (ex vat)
5-9£537.72 (ex vat)

Designed to offer the unrivalled reliability demanded by critical applications, the unit features a PCB backplane with all soldered joints, minimising internal wiring and crimped connections. The vertical form factor also streamlines installation saving valuable time. The VPDUs are suitable for a range of applications and AV environments, for example; industrial, data centers and medical AV infrastructures.

The new vertical design utilises unique high density IEC Connectors to provide the highest density available, allowing you to save valuable rack space. The design also features low energy consumption for a leaner, greener and more space efficient rack room.

Key Benefits:

  • The new VPDU has dual 32A, A+B inputs, with 20 + 20 IEC 13 outlets. Offering the opportunity to provide main and backup power through the same VPDU, saving the need for a second single supply power strip.
  • Each C 13 outlet has its own integrated status LED so that blown fuses can be quickly and easily identified and resolved, particularly important when searching for the problem in the dark recesses of a rack in time critical situations.
  • Easy mounting kit* offering rear or side placement for extra flexibility and ease of installation.
  • PCB Platform and crimp free design mean unprecedented levels of reliability.

*Mounting kit supplied with unit

LED Indication
• Power: Blue – Power 1 applied to the unit
• Power: Orange - Power 2 applied to the unit

Output LEDs 1 - 40
• On: Circuit on and fuse working
• Off: Circuit fuse has faileds

• 2 x 110-240V AC 50/60Hz Max load 32A
• Connector 32A: 2 x Neutrik NAC3MP-HC 32A 250VAC

• 110-240V AC Max load 10A per outlet, fused on front panel
• Connectors: 40 x C13 IEC 3 pin
• Fuses: 40 x 10A 250V AC Ceramic Anti surge 20mm

• W 55mm x D 65mm x H 1767mm
