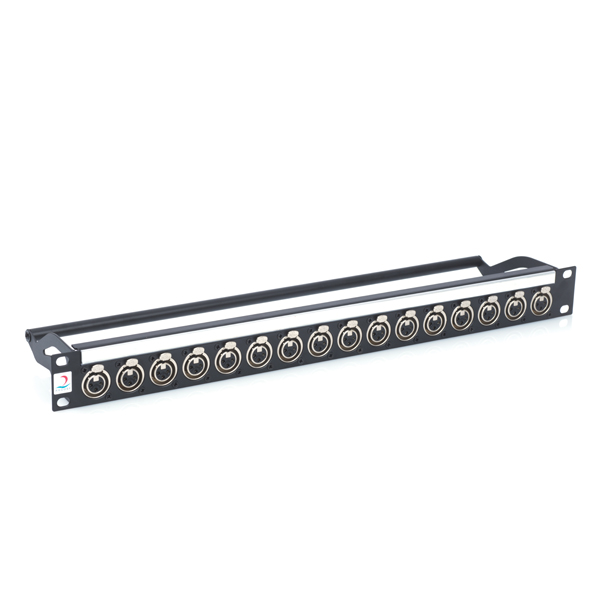

Argosy XLR Panel 1U 1 x 16 Loaded Female Black
-
Argosy XLR Panel 1U 1 x 16 Loaded Female Black
Argosy XLR Panel 1U 1 x 16 Loaded Female Black
PN - DP-00-5016
The Argosy XLR termination panels are supplied fully loaded with Neutrik 3 pole DLX series connectors and are offered in 3 standard formats, Male, Female and 50/50.
The panel’s unique design permits connectors to be loaded from the rear delivering a sleek and aesthetically pleasing front panel. The panels are extremely robust and come supplied with a snap-fit Ident strip, they also feature a large OD on the bar which makes landing cables easier and addresses issues associated with smaller bars.
We also make up custom configurations, to specify your requirement don’t hesitate to get in touch with sales on +44 (0)1844 202101 or email [email protected].
Electrical
- Capacitance between contacts: ≤ 4 pF
- Contact resistance: ≤ 5 mΩ (inner)
- Dielectric strength: 1,5 kVdc
- Insulation resistance: > 2 GΩ (initial)
- Rated current per contact: 16 A
- Rated voltage: 50 V
Mechanical
- Insertion force: ≤ 20 N
- Withdrawal force: ≤ 20 N
- Wiresize max.: 2.5 mm²
- Wiresize max.: 14 AWG
- Locking device: Latch lock
- Chassis shape: D
- Lifetime: 1000 mating cycles
Material
- Contact plating: 2 µm Ag over 2 µm Ni
- Contacts: Bronze (CuSn6)
- Insert: Polyamide (PA 6.6 30 % GR)
- Shell: Zinc diecast (ZnAl4Cu1)
- Shell plating: Nickel
- Locking element: Stahl Ck67
