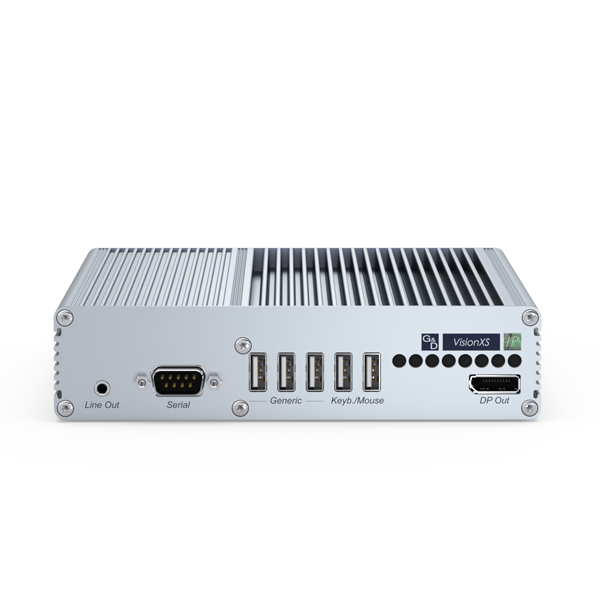

VisionXS-IP-CON-C-DP-UHR-AR-DT

VisionXS-IP-CON-C-DP-UHR-AR-DT
PN - RA-1120392
£2902.40(ex vat) / Each
Qty Price
1+£2902.40 (ex vat)

The VisionXS-IP-DP-UHR KVM-over-IP series extend high-resolution 4K video signals at 60 Hz over IP-based networks on layer 3 (1Gbit/s up to 10Gbit/s). The space available (especially in the rack) can be optimally used thanks to the considerably lower space requirement and the appropriate mounting solutions. The system processes DisplayPort 1.2 image data pixel-perfectly and with very good hand-eye coordination. An extender system consists of a computer module (CPU) and a user module (CON) and enables a computer to be operated from a greater distance.

Video

bluedec™ advanced developed compression algorithm of the latest generation for best video quality and latency-free transmission resolution up to;

  • 4096 x 2160 @ 60 Hz (4K2K/60Hz),
  • 2560 x 1440 @ 144 Hz,
  • 1920 x 1080 @ 240 Hz (Full HD/240Hz)

Signals

  • Encrypted video, keyboard, mouse and control data (AES-128)
  • transparent audio signals (stereo, analogue)
  • Embedded stereo audio (DisplayPort Digital, 2 channel LPCM)
  • transparent RS232 (max. 115.200 bps)
  • GenericUSB support for USB classes HID (Human Interface Device) and mass storage

Transmission

  • Via CAT-x cable and over IP-based networks (layer 3)
  • KVM-over-IP™

Device

  • Efficient mounting solutions that require less screws save space, time and costs
  • Particularly small design

Operation

  • Multilingual on-screen display for configuration and operation
  • Web application Config Panel 21 for configuration, monitoring and updates (NEW: in multiple languages)

Notes

  • Powered by internal andop tional external power supply
