G&D VisionXS-IP-CPU-C-DP-UHR-AR-DT

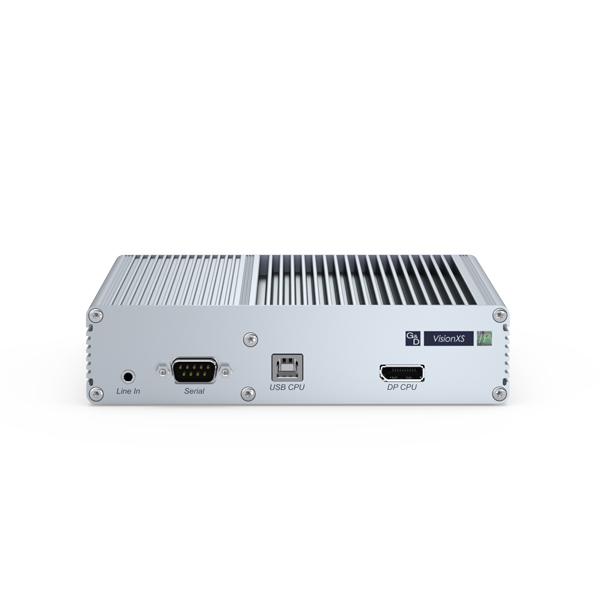

  • G&D VisionXS-IP-CPU-C-DP-UHR-AR-DT front
    G&D VisionXS-IP-CPU-C-DP-UHR-AR-DT front
  • G&D VisionXS-IP-CPU-C-DP-UHR-AR-DT rear
    G&D VisionXS-IP-CPU-C-DP-UHR-AR-DT rear
G&D VisionXS-IP-CPU-C-DP-UHR-AR-DT
PN - RA-1110262
POA
Qty Price
1POA

Please contact Argosy for a quotation: +44 (0)1844 202101 / [email protected]

The VisionXS-IP-DP-UHR series KVM-over-IP extenders, extend high-resolution 4K video signals at 60 Hz over IP-based standard networks (1Gbit/s up to 10Gbit/s , OSI layer model Layer 3).

Due to the significantly lower space requirement and the appropriate mounting solutions, the available space (especially in the rack) can be optimally used.

DisplayPort1.2 image data is processed with pixel perfection and very good hand-eye coordination.

An extender system consists of a computer module (CPU) and user module (CON) and enables a computer to be operated from a greater distance.

Key Benefits

Video

  • blue dec™ – advanced compression level of the latest generation for the best video quality and latency-free transmission

Resolution up to:

  • 4096 x 2160: 60 Hz (4K2K/60Hz)
  • 2560 x 1440: 144 Hz
  • 1920 x 1080:  240 Hz (Full HD/240Hz)

Signals

  • Encrypted video, keyboard, mouse and control data (AES-128)
  • Transparent audio signals (stereo, analogue)
  • Embedded stereo audio (DisplayPort Digital, 2-channel LPCM)
  • Transparent RS232 (max. 115,200 bps)
  • GenericUSB support for USB classes HID (Human Interface Device) and mass storage
  • The product allows the use of a GenericUSB device via a user module. For this, both the user module used and the computer module used must support the use of a GenericUSB device.

Transmission

  • Via CAT-x cable and within IP-based standard networks (layer 3)
  • KVM-over-IP™

Device

  • Efficient assembly solutions without a lot of screwing work save space, time and money
  • Particularly small design

Service

  • Multilingual on-screen display for configuration and operation
  • Web application Config Panel 21 for configuration, monitoring and updates (NEW: in other languages)

Transmission
KVM-over-IP™ transmission: Yes
Number of transmission channels: 1
Redundant transmission channels: optional redundant KVM transmission
Range: 100 meters
KVM matrix systems component: calculator module
Medium: CAT7, CAT6
Data rate: 10Gbps, 1Gbps

Video Output
Number of video channels: 1
Format: Display Port 1.2 (LBR, HBR, HBR2, Single Stream Transport (SST))
Colour depth: 24 bit
Pixel encoding: RGB 4:4:4 (24bpp / 8bpc)
Pixel rate: 25 Mpixel/s to 600 Mpixel/s
Vertical frequency: 24Hz to 240Hz
Horizontal frequency: 25kHz to 295kHz
Resolution examples:
4096 × 2160 (60Hz)
3840 × 2160 (60Hz)
2560 × 1600 (60Hz)
2560 × 1440 (144Hz)
2048 × 2048 (60Hz)
1920 × 1200 (60Hz)
1920 × 1080 (240Hz)
1920 × 1080 (60Hz)

Other VESA and CTA standardised resolutions possible within the framework of the pixel rate and horizontal/vertical frequency.

Audio 1
Transmission type: Stereo, clear
Resolutions: 24-bit digital
Sampling rate: up to 96kHz
Bandwidth: 22kHz
Audio support: Analogue

Audio 2
Transmission type: Stereo, 2-channel LPCM
Resolutions: 24 bits, 20 bits, 16 bits
Sampling rate: up to 48kHz
Audio support: digital embedded

USB
Specification: USB2.0
GenericUSB support: 1 device
Medium: embedded
Transfer rate: 8.5 Mbit/s (full speed)
USB classes: Mass Storage (MSC / UMS), Human Interface Device (HID)

Serial
Default: RS232
Transparent transmission: Yes
Data rate: 115200 bps
Signals: TxD, RxD, RTS, CTS, GND, 5V

Network
Medium: CAT5, CAT6, CAT7
Data rate: 10Mbps, 100Mbps

Maintenance
Update via: Config Panel (Network)
Service port settings: 115200bps (8/N/1)

Housing
Material: Anodized aluminum
Size: W 170mm H 39.8mm D 184mm
IP protection class: IP20
Weight: approx. 1.28 kg

Operating Conditions
Temperature operation: 5ºC to 35ºC
Humidity operation: 20% to 80% non-condensing
Area of ​​use: interior
Maximum operating altitude: 3048m above sea level
Temperature storage: -20°C to 60°C
Humidity storage: 15% to 85% non-condensing
MTBF: 200000 hours at 25°C

Power Supply 1
Input voltage: 12VDC
Power consumption: 1.9 A
Power consumption idle: 13.4W
Power consumption max.: 21.1 W
Heat dissipation idle: 13.4W
Heat dissipation max.: 21.1 W

Power Supply 2
Input voltage: 100-240VAC
Input frequency: 60-50Hz
Power consumption: 0.5-0.3 A
Power consumption idle: 14.9 W
Power consumption max.: 22.7 W
Heat dissipation idle: 14.9 W
Heat dissipation max.: 22.7 W

Standards
Product safety 2001/95/EC
EAC TR CU 020/2011 Declaration
EAC TR CU 004/2011 Declaration
EAC TR CU 037/2016 Declaration
Prohibited substances RoHS 2011/65/EU
EMC Directive 2014/30/EU
EN55032 (CISPR 32) - EMC emission
EN55024 EMC immunity
EN61000-3-3 - EMC flicker
EN61000-3-2 - EMC current
harmonics EN61000-6-2 - EMC extended
Interference immunity industry
Low Voltage Directive 2014/35/EU
EN62368 - Safety
FCC CFR 47 part 15 subpart B cl. B
