Argosy BNC HDTV Crimp Plug for Image 720

Home / Video / Connectors
  • Argosy BNC HDTV Crimp Plug for Image 720
    Argosy BNC HDTV Crimp Plug for Image 720
  • 1 / 1
Argosy BNC HDTV Crimp Plug for Image 720
PN - 100326
£270.60(ex vat) / pack of 100
Qty Price
1-4£270.60 (ex vat)
5-9£144.32 (ex vat)
10+£135.30 (ex vat)
Description Technical Specification

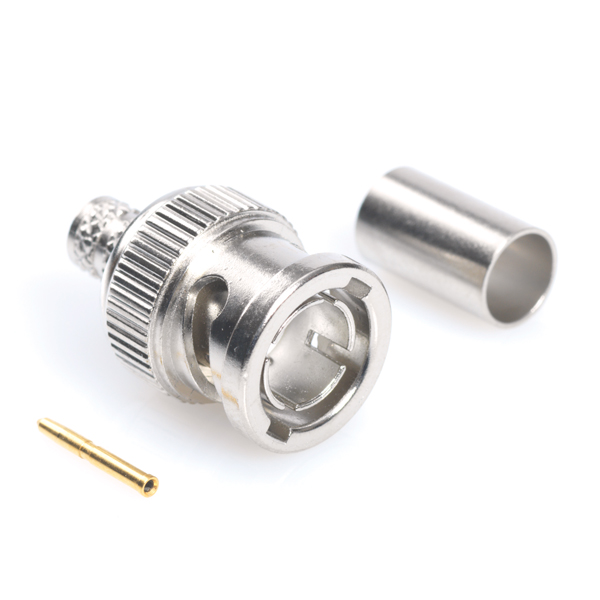

Specifically for 4K UHDTV applications, the high-performing 12G 75-ohm BNC crimp connector has extremely low return loss and is ideal for 12GHz frequencies.

Designed for the Argosy Image 720, & Belden 1505ENH, the male plug has a nickel-plated zinc alloy body, gold-plated brass pin, with Zinc plated bras Bayonet coupling nut.

With a maximum frequency of 12GHz, the plug can resist temperatures between -55 to 85 degrees C and are durable for up to 500 mating cycles.


Mechanical Cable

  • Retention: Equal to breaking strain of cable
  • Durability: 500 mating cycles
  • Fixing Method: Crimp
  • Contact Termination: Crimp

Environmental

  • RoHS Compliant: Yes
  • Temperature Range: -65 to +165°C

Electrical

  • Dielectric Withstanding: 1500 Volts RMS Maximum
  • Impedance: 75 ohms
  • Interface Frequency: 12 GHz
  • Working Voltage:500 Volts RMS Maximum
  • Return Loss: 3GHz      -38.8db
                         6GHz      -32.3db
                         9GHz      -29.8db
                       12GHz       -21.5db
