Neutrik NE8FDP Chassis etherCON Feedthrough
Key Benefits:
- Accommodates NE8MC* or any standard RJ45 plug
- Approved latch lock system
- Complies with Cat 5e according to TIA / EIA 568B and ISO / IEC 11801 standard
- Mountable from the front or rear of the panel

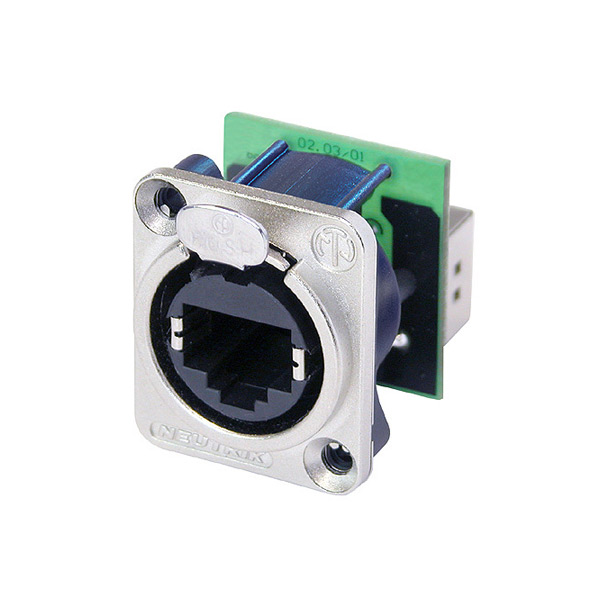

The Neutrik NE8FDP is a RJ45 feedthrough receptacle, D-shape metal flange with the latch lock, mounting screws included.
The etherCON Series is a ruggedised and lockable RJ45 connector system, optimised for pro audio, video and lightning network applications. The chassis connectors are shaped to fit into standardised panels out of the entertainment industry.
The D-Series offers the most rugged design of the etherCON series and is perfectly suitable for panel mount and the installer market.
Attention! Does not intermate with CAT6 cable connector NE8MC6-MO and NKE6S* cables.
Gender: female
Electrical
Contact resistance: < 10 mΩ
Dielectric strength: 1 kVdc
Frequency range: 1 - 100 MHz
Insulation resistance: > 0.5 GΩ
Rated current per contact: 1,5 A
Rated voltage: < 50 V
Transmission performance: CAT 5e
Standard compliance: TIA/EIA 586B, IEC11801
Material
Contact plating: 0.2 µm Au over Ni plating
Contacts: Bronze (CuSn8)
Insert: PBTP 15 % GR
Shell: Zinc diecast (ZnAl4Cu1)
Shell plating: Nickel
Mechanical
Insertion force: ≤ 20 N
Withdrawal force: ≤ 20 N
Lifetime: > 1000 mating cycles
Panel thickness: max. 4 mm 0.16’
Wiring: Feedthrough
Locking device: Latch lock
Chassis shape: D
Environmental
Flammability: UL 94 V-0
Temperature range: -30 °C to +80 °C
