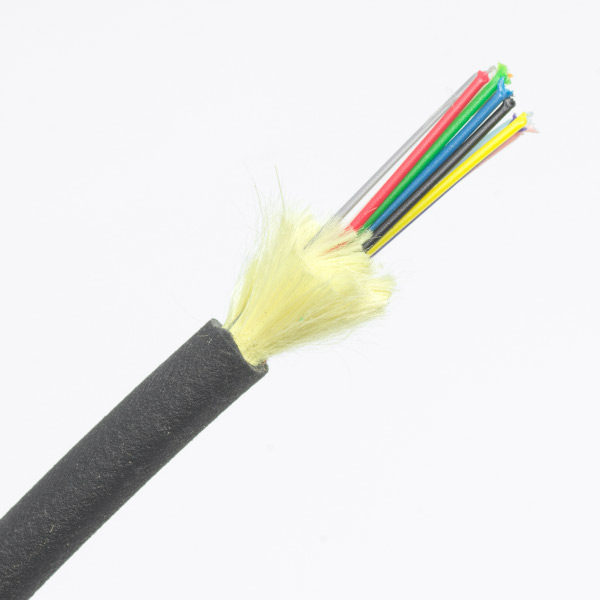

OCC DX012VALT9KBM 12 Core OM3 TB Tactical Fibre

  • OCC DX012VALT9KBM 12 Core OM3 TB Tactical Fibre
    OCC DX012VALT9KBM 12 Core OM3 TB Tactical Fibre
OCC DX012VALT9KBM 12 Core OM3 TB Tactical Fibre
PN - JB-00-1203
POA
Qty Price
1-99mPOA
100-499mPOA
500m+POA

The DX-Series is a deployable cable that is ideal for use in harsh environments where deployment and retrieval for reuse are required.

Key Benefits:

  • Extremely strong, lightweight, rugged, survivable tight-buffered cables are designed for broadcast field use and commercial applications
  • Compact, round cable design for ease of transportation and deployment
  • Core-locked jacket for improved mechanical performance
  • Designed for use in adverse environments where reduced size and weight are important
  • Helically stranded cable core for flexibility, survival in difficult pulls, and exceptional mechanical protection for the optical fibers
  • Cables have been tested and are in use in broadcast data communications applications worldwide
  • Can be used outdoors for temporary deployment directly on the ground in all terrains, including severe environments
  • Suitable for industrial, mining and petrochemical environments; chemical resistant
  • Crush resistant and resilient with a thick layer of aramid strength members
  • Polyurethane jacketed for abrasion, cut and chemical resistance
  • Most commonly used with ruggedised multiway military tactical field connectors, for maximum connector retention (400lbs)
  • Flame-Retardant Tactical (V) outer jacket

Laser Ultra-Fox™ Fibre Performance

  • Fibre Code: ALT
  • Industry Standard Designation: Laser Optimised OM3, Bend Insensitive, ISO/IEC 11801
  • Core/Cladding Diameter (µm): 50/125
  • Numeric Aperture: 0.20
  • Wavelength (nm): 850/1310
  • Gigabit Ethernet Distance (m): 1000/600 10-Gigabit
  • Ethernet Distance (m): 300/300
  • Maximum Cabled Attenuation (dB/km): 3.0/1.0
  • Minimum Laser EMB Bandwidth (MHz-km): 2000/500
  • Minimum OFL LED Bandwidth (MHz-km): 1500/500
  • Primary Coating Diameter (µm): 245
  • Secondary Buffer Diameter (µm): 900
  • Proof Test Level (kpsi): 100

Installation and Operating Characteristics

  • Max Tensile Load: Installation - 2,100 N (470 lbs)
                                Operating - 700 N (160 lbs)
  • Min Bend Radius: Installation - 6.5 cm (2.6 in)
                                Operating 3.3 cm (1.3 in)

Mechanical and Environmental

  • Impact Resistance EIA/TIA-455-25A: 1500 impacts
  • Crush Resistance TIA/EIA-455-41A: 1800 N/cm
  • Flex Resistance: 2000 cycles
  • Operating Temperature: -40°C to +85°C
  • Storage Temperature: -70°C to +85°C

Cable Characteristics

  • Jacket Colour: Black
  • Jacket Material: Flame Retardant Tactical Polyurethane Buffer
  • Material: Hard Elastomeric
  • Cable Weight: 43 kg/km (29 lbs/1000’)
  • Cable Diameter: 6.5 mm ( 0.26 in)
