Neutrik NAC3FPX-TOP powerCON

  • Neutrik NAC3FPX-TOP powerCON
    Neutrik NAC3FPX-TOP powerCON
  • Neutrik NAC3FPX-TOP powerCON
    Neutrik NAC3FPX-TOP powerCON
  • Neutrik NAC3FPX-TOP powerCON
    Neutrik NAC3FPX-TOP powerCON
Neutrik NAC3FPX-TOP powerCON
PN - 101397
£6.63(ex vat) / each
Qty Price
1-4£6.63 (ex vat)
5-9£6.24 (ex vat)
10+£6.24 (ex vat)

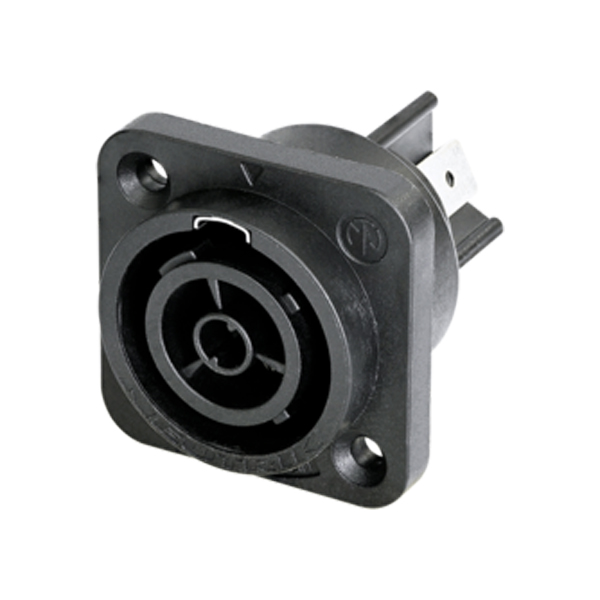

Appliance outlet connector, 1/4" flat tab terminals The powerCON TRUE1 TOP is a locking 16 A true mains connector for outdoor applications. It replaces appliance couplers wherever a very rugged solution in combination with a locking device is needed in order to guarantee a safe power connection. The powerCON TRUE1 TOP is a connector with breaking capacity (CBC), i.e. it can be connected or disconnected under load or live.

Key Benefits:

  • Heavy duty sealed power connector for harsh and demanding environments
  • Outdoor protection according to IP65 and UL50E enclosure type 4 (in mated condition or in combination with the rubber sealing cover SCNAC-MPX)
  • Uses high impact UV-resistant materials
  • True mains connector with breaking capacity (CBC)
  • Lockable 16 A single phase connector (USA: 20 A)
  • Easy and reliable twist lock system
  • Extremely robust and reliable
  • Unique Neutrik cable retention
  • ENEC certified according to IEC 60320
  • UL498 certified

Electrical

  • Contact resistance: ≤ 3 mΩ
  • Dielectric strength: 4 kVdc / 2.8 kVac
  • Insulation resistance: >0.1 GΩn (after damp heat test)
  • Number of electrical contacts: 2 + PE
  • Rated current per contact: 16 A rms (USA: 20 A)
  • Rated voltage: 250 V ac

Mechanical

  • Lifetime: > 5000 mating cycles
  • Wiresize: 2.5 mm², 12 AWG

Material

  • Contact plating: 2 µm Ag
  • Locking element: Stainless steel
  • Shell: Polyamide (PA 6.6)
  • Contacts: Spring Copper (CuSn0.2)

Environmental

  • Flammability: UL 94 V-0
  • Temperature range: - 30 °C - +80 °C
  • Protection class: IP65, UL50E enclosure type 4 (mated or in combination with SCNAC-MPX)
